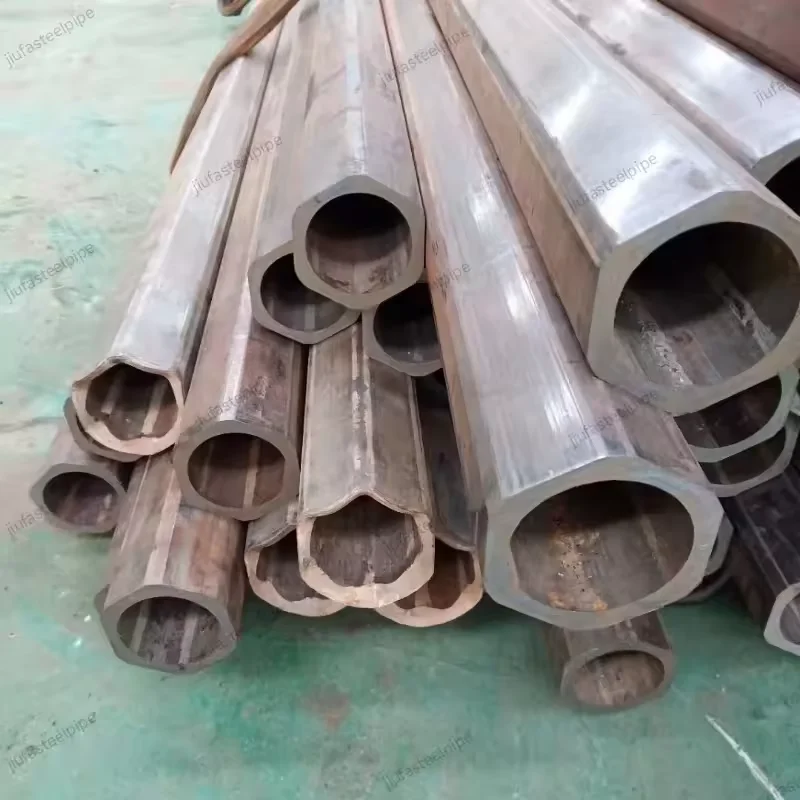

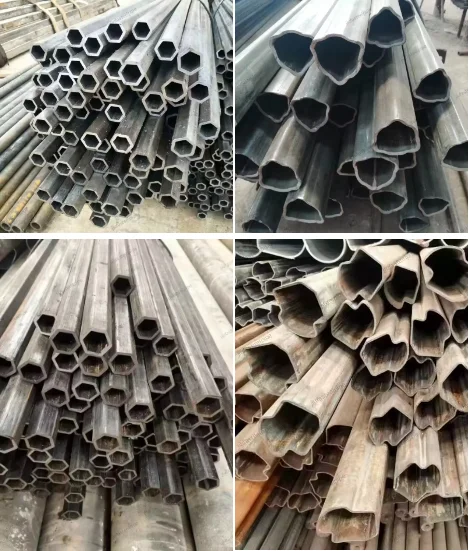

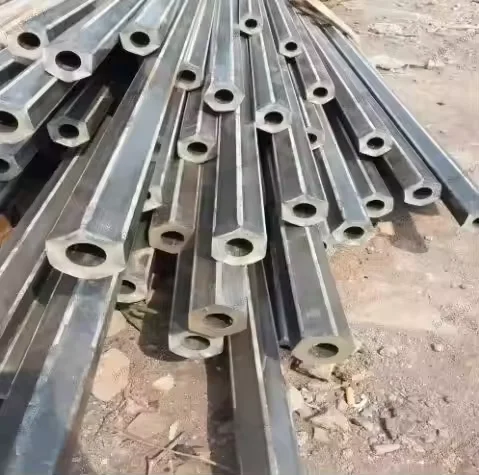

Seamless Special Section Tube is widely used in various structural parts, tools and mechanical parts. Compared with round pipe, special-shaped pipe generally has larger inertia moment and section modulus, and has greater bending and torsion resistance, which can greatly reduce the weight of the structure and save steel. Specially shaped pipes are generally distinguished according to the cross section. According to the material, they can be divided into seamless steel pipe special-shaped pipes, aluminum alloy special-shaped pipes, and plastic special-shaped pipes. The following is mainly about steel pipe specials. The steel pipe special-shaped pipe can be divided into elliptical special-shaped steel pipe, triangular special-shaped steel pipe, hexagonal special-shaped steel pipe, octagonal special-shaped steel pipe, semicircular special-shaped steel circle, unequal hexagonal special-shaped steel pipe, five-petal plum shaped special-shaped steel pipe, double-convex special-shaped steel pipe, double-concave special-shaped steel pipe, melon shaped special-shaped steel pipe, conical special-shaped steel pipe, corrugated special-shaped steel pipe.
| Production Range | Outer Diameter:6-530mm (0.24 inch – 21.18 inch) |
| Wall Thickness:0.8-200mm (0.03 inch – 7.89 inch) | |
| Material / Grade |
Carbon Steel: GB/T 3094: 10#, 20#, 35#, 45#, 55#, Q235B, Q235C, CF53, A105 ASTM A519: 1010, 1020, 1026, 1035, 1045, 1050 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: C10/CK10, C22/CK22, C35/CK35, C45/CK45, CF53 JIS3441/JIS3444/JIS3445: STKM11A, STKM12A/STKM12B/STKM12C, STKM13A/STKM13B/STKM13C JIS G4051: S10C, S20C, S25C, S35C, S45C, S55C |
|
Alloy Steel: GB/T 3094: 16Mn(Q345B), 20Cr, 40Cr, 15CrMo, 20CrMo, 28CrMo, 30CrMo, 35CrMo, 42CrMo, 20CrMnTi, 40MnMoV, 20Mn2, ZF6, 16MnCr5, 20MnCr5, 38Mn2V, 09CrCuSb(ND) ASTM A519: 5120, 5140, 4130, 4135, 4140 DIN17121/EN 10297-1, DIN1629/DIN2391/EN 10305-1: ST52, EN10084-1998 20Cr4, 41Cr4, 15CrMo4, 25CrMo4, 35CrMo4, 42CrMo4, 16MnCr5 JIS3441/JIS3444/JIS3445: SCM432/SCRRM3, SCM4 JIS G4053: JIS SCr420, JIS SCr440, SCM415, SCM420 |
|
| Tolerance | Can be customized according to customer's requirements |
| Technique | Cold Drawn / Cold Rolled |
| Shape | Triangle, Hexagon, Square, Rectangle, Octagon, Lemon Pipe and Others can be customized |
| Further Processing for Steel Tubes | Cutting, Chamfer, Threading, Inner diameter or Outer Diameter Lathe, Surface Shot Blasting, Laser Marking |
| HOT SALES MARKET | Southeast Asia, South Asia, Middle East, Europe, Middle&South America, Africa and Oceania |
